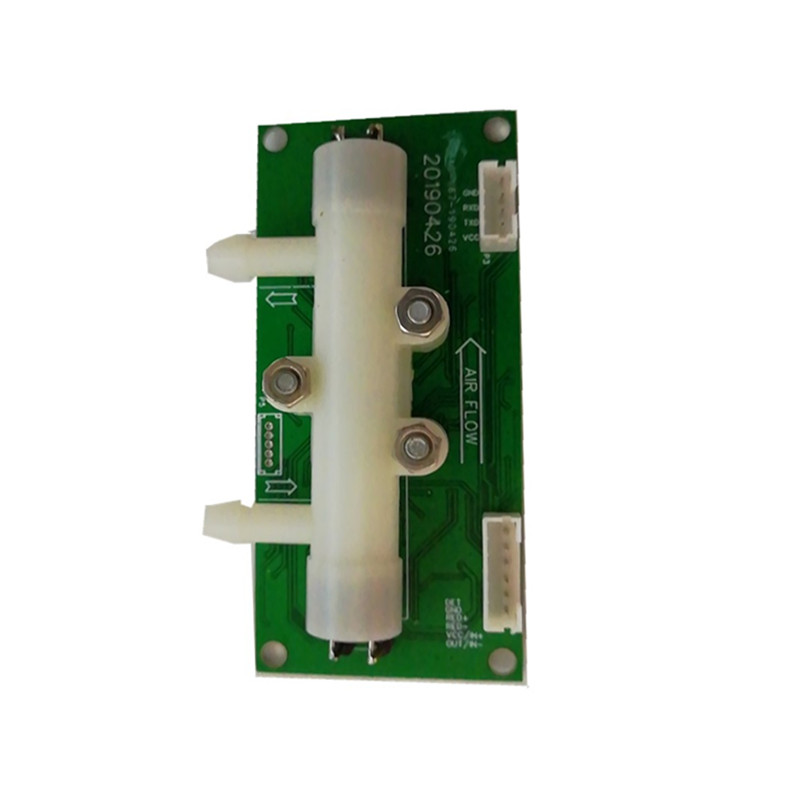

This is a portable O2 & SpO2 module, which can be used to measure O2, SpO2 & PR parameters integrated with medical devices.
Model:
M180

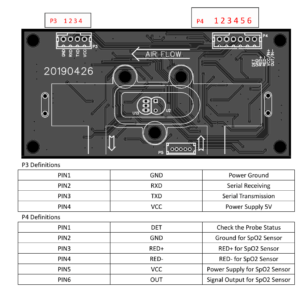

Interface:
Parameters:
O2 Testing and Accuracy Range:
- O2 Concentration：0~100% ; O2 Flow：0~10L/min
- O2 Concentration：±1.8%FS @(10~45)℃; O2 Flow：±0.2L/min@(10~45)℃
- O2 Resolution: O2 Concentration：0.1%; O2 Flow：0.1L/min
SpO2 Testing and Accuracy Range:
- SpO2 Range: 0 ～ 100%
- SpO2 Resolution: 1%
- SpO2 Accuracy: 70～100%：±2 digit; 0%～69%：undefined
PR Testing and Accuracy Range:
- PR Range: 15～254bpm
- PR Resolution: 1bpm
- PR Accuracy: ±3 bpm
Environment:
- Temperature: Working: 0～45 °C, Storage: -20～60 °C
- Humidity: Working: 30～95 %，Storage: 10～100%
- Elevation: Working: -500～5000 meters, Storage: -500～10000 meters
- Atmospheric Pressure: 76KPA～106KPA
Electrical Characters:
- Input Voltage: 4.5V – 6.0V
- Standby Current: About 30mA
- Testing Current: About 50mA
Specifications:
| Name | O2 & SpO2 Module |
| Signal Output | TTL UART ( USB, RS232 Optional) |
| Size | 75.7 mm X 35.6 mm |
| Color | Blue |
| Latex-free | No |
| Sterile | No |
| Warranty | 24 months |
Communication Protocol:
Welcome to contact us for details.
